Project 2: Transformations

Bogdan Gevko - gevko@oregonstate.edu

Recorded video

HTML Report

Project Details

The Circle

The CircleList is a GL_LINE_LOOP with 100 segments. I started with the example shown to us in the GL introduction slides and adjusted it to meet the assignment specifications.

Like the example, I first divided 2PI into 100 radian slices. Then, I created a loop that iterated 100 times, adding a slice to each point until I reached a full circle.

Importing the Horse

I took the horse vertex data and pasted it into its own file, horse.cpp. I then included it in the project below the global variables. Then, I created a new list, pasted the starter code, and it worked without any problems.

The model was a bit too big compared to my circle, so I immediately scaled it down by 50%. I wanted this to be the first transformation, so I included it right before calling HorseList.

Transformations

I did the transformations in the following order, moving in the upward direction glCallList:

  • Scale the down by 50%
  • Rotate the horse about the z-axis using the sine function, giving the back-and-forth rocking effect.
  • Translate the position on the y-axis, giving it the up-and-down motion.
  • Rotated it 90 degrees about the y-axis to make it face the direction in which it will be moving
  • Animated its rotation rotation about the y-axis to prepare it to face the correct direction as it’s going around in a circle.

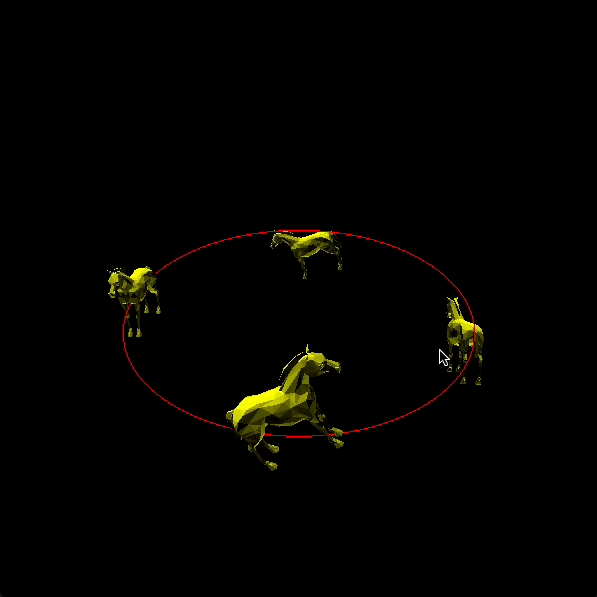

Finally, I animated its x and z position using sin and cos functions with a radius of two, which made the horse follow the circle.

For the extra credit, I created a loop and used glPushMatrix and glPopMatrix to duplicate, position, and rotate the other three horses with their respective offsets, which I stored in variables above the loop.

Inside View

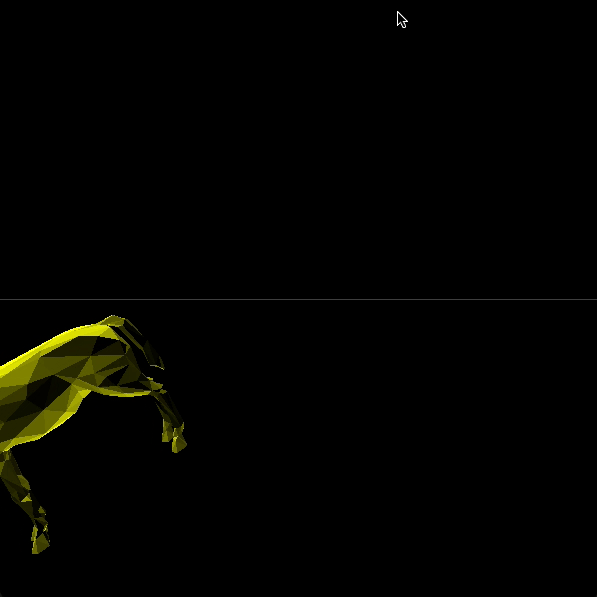

To create the first person view, I created a global variable and set it equal to 0 by default.

In the gluLookAt section, I created a conditional to show the first person view when view is set to 1, which I attached to a key binding.

Additionally, I added a few other conditionals throughout the program to prevent ORTHO and other transformations from being triggered in this view.

That’s it! Thanks for reading.
